Description

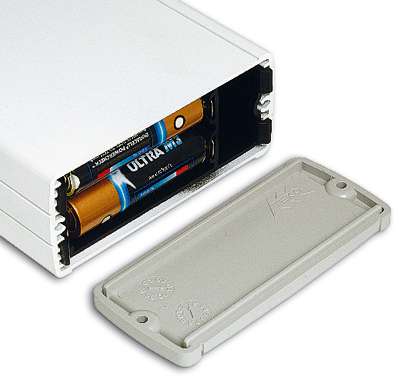

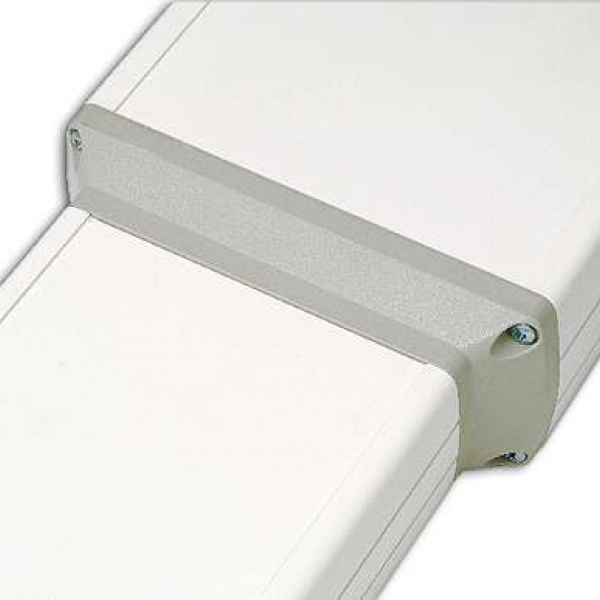

Extruded aluminium cases with high quality finishing, ergonomically designed for a comfortable fit into the user’s hand. Perfect for instrument or mobile data enclosures requiring a keypad and display. Internal PCB guides. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Closing by twelve screws.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

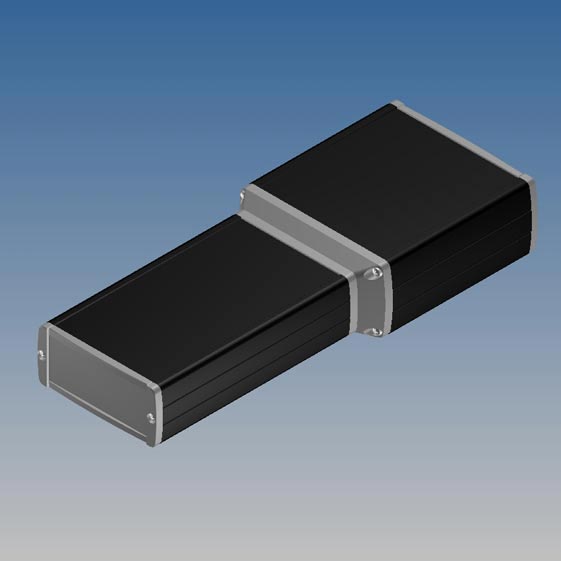

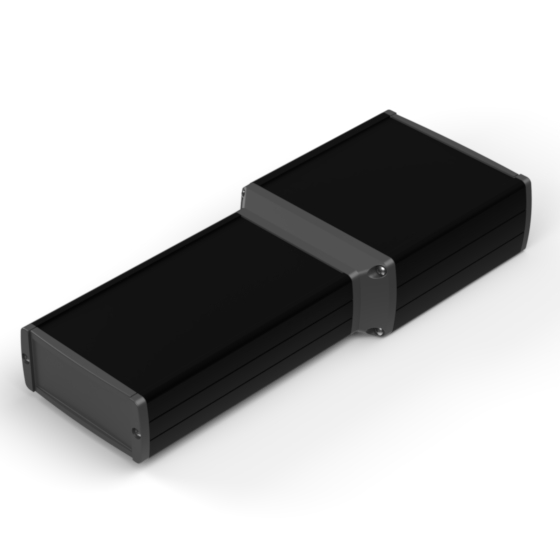

TEKAL-T1.29 | 10,453 | 4,169 | 1,803 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937/ 5,315 | 3,169/ 3,957 | 12 | - |
ALP-2 ALP-3 |
PDF DWG |
|
|

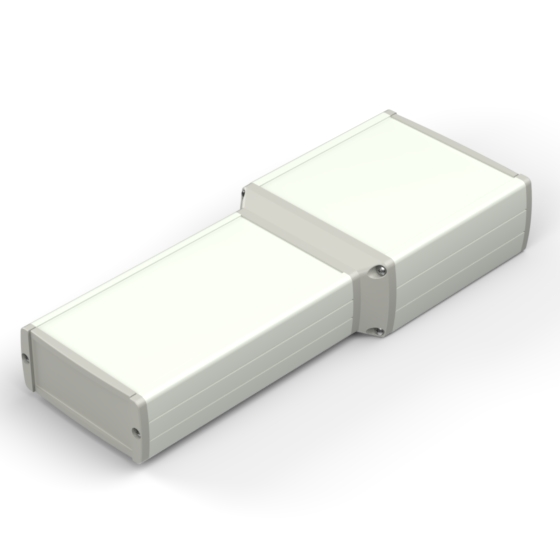

TEKAL-T1.30 | 10,453 | 4,169 | 1,803 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937/ 5,315 | 3,169/ 3,957 | 12 | - |
ALP-2 ALP-3 |
PDF DWG |
|
|

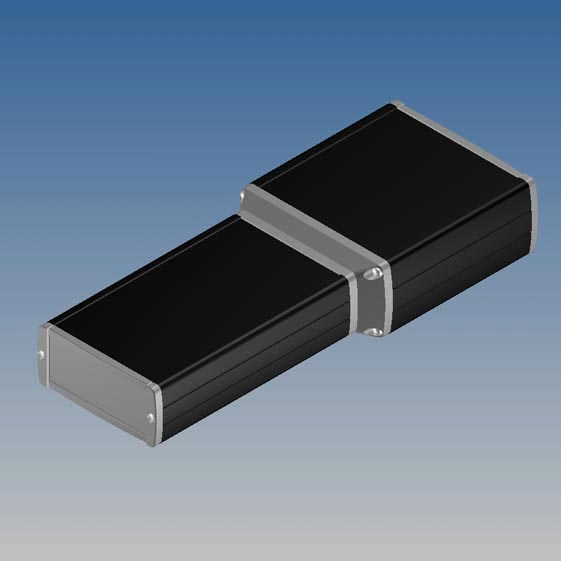

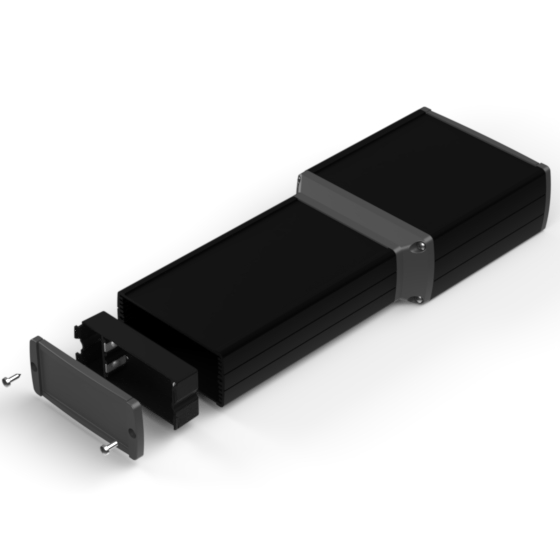

TEKAL-T1B.29 | 10,453 | 4,169 | 1,803 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937/ 4,606 | 3,169/ 3,957 | 12 | 2 x AA / 1 x 9V |
ALP-3 |
PDF DWG |
|
|

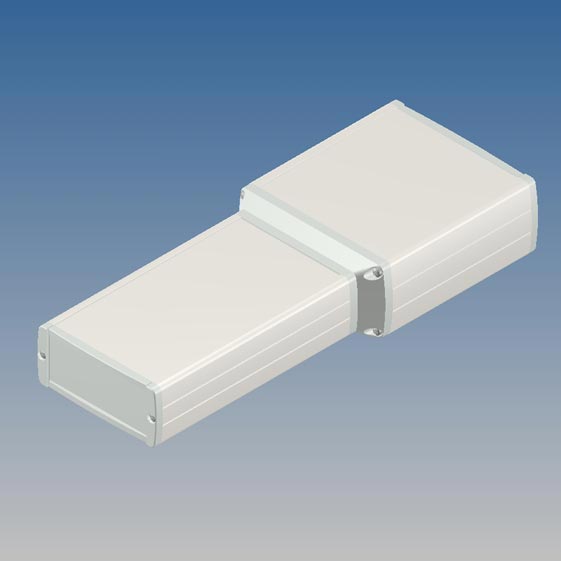

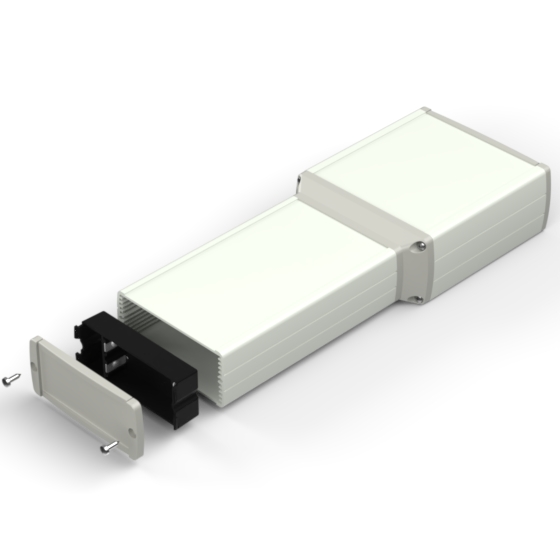

TEKAL-T1B.30 | 10,453 | 4,169 | 1,803 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937/ 4,606 | 3,169/ 3,957 | 12 | 2 x AA / 1 x 9V |
ALP-3 |
PDF DWG |
|
|

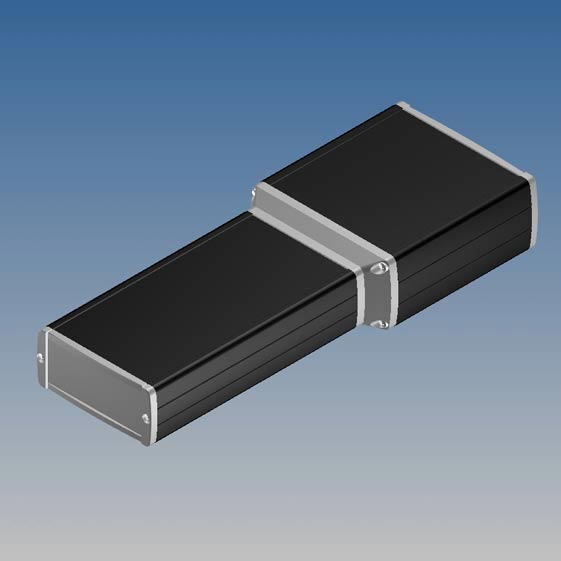

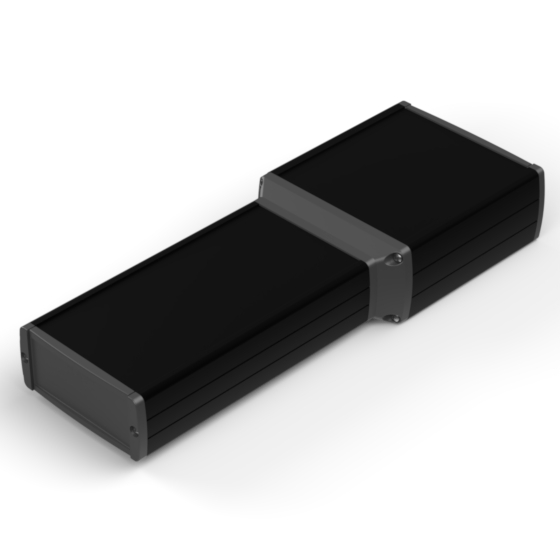

TEKAL-T2.29 | 11,043 | 4,169 | 1,803 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937/ 5,906 | 3,169/ 3,957 | 12 | - |
ALP-2 ALP-3 |
PDF DWG |
|
|

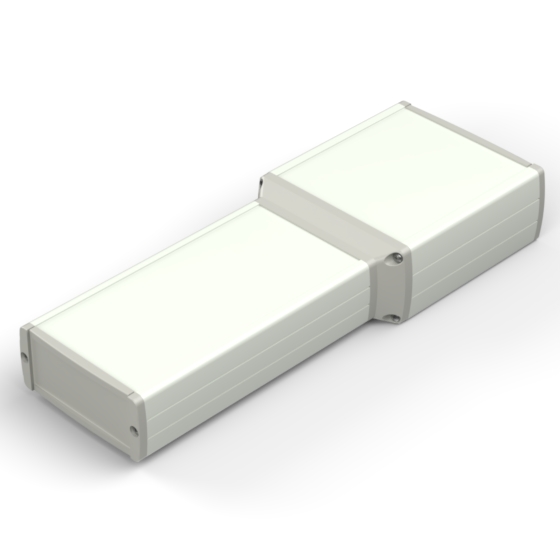

TEKAL-T2.30 | 11,043 | 4,169 | 1,803 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937/ 5,906 | 3,169/ 3,957 | 12 | - |
ALP-2 ALP-3 |
PDF DWG |
|
|

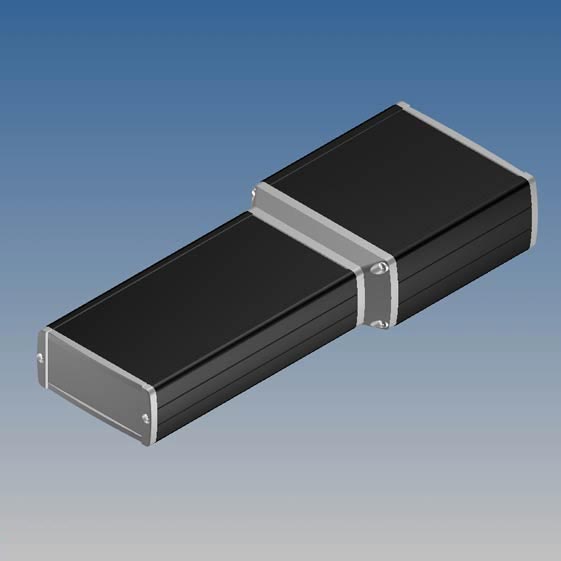

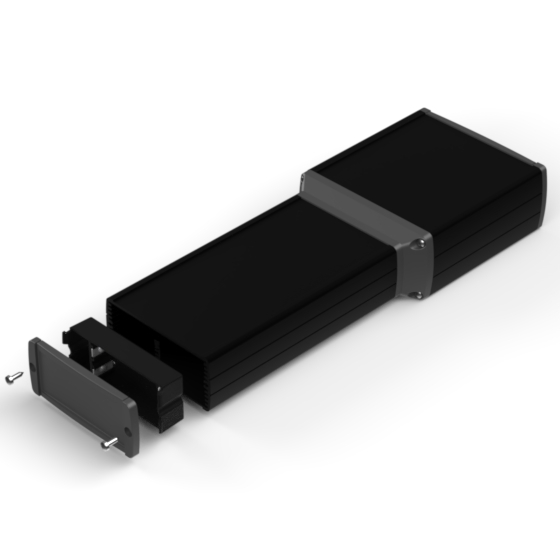

TEKAL-T2B.29 | 11,043 | 4,169 | 1,803 |
9004 7012 |
ALLOY 6060 - 1640 AS | 3,937/ 5,197 | 3,169/ 3,957 | 12 | 2 x AA / 1 x 9V |
ALP-3 |
PDF DWG |
|
|

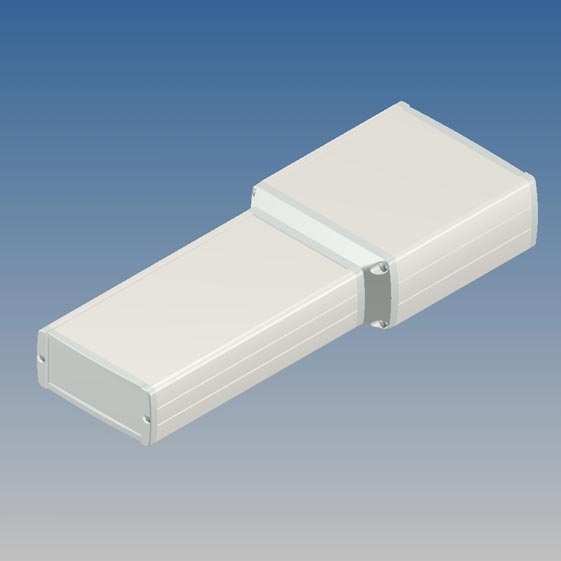

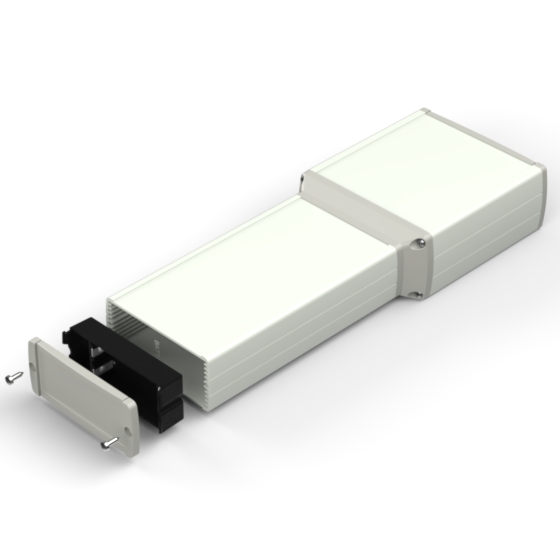

TEKAL-T2B.30 | 11,043 | 4,169 | 1,803 |
9002 9018 |
ALLOY 6060 - 1640 AS | 3,937/ 5,197 | 3,169/ 3,957 | 12 | 2 x AA / 1 x 9V |
ALP-3 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
