Description

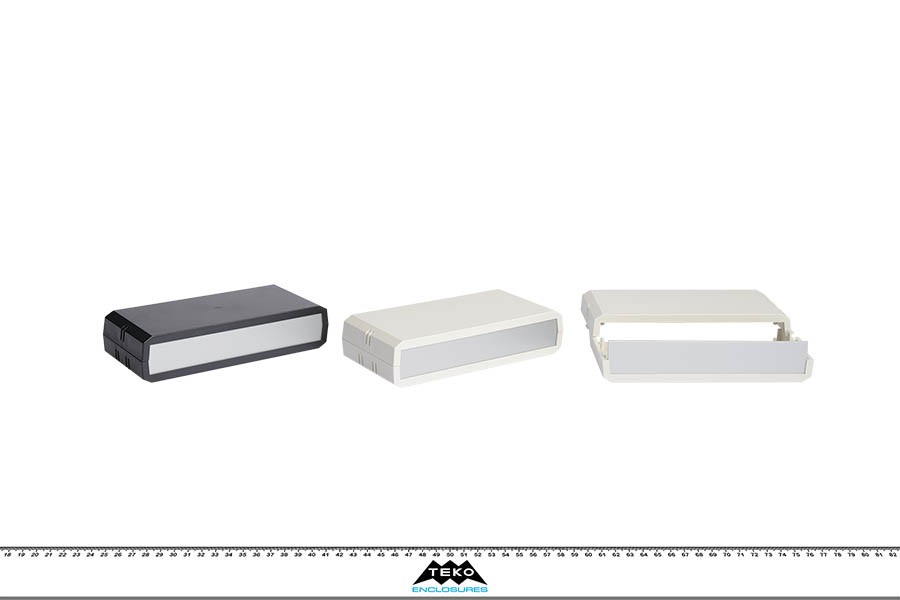

ABS enclosures with matte surfaces, featuring ventilation slots on both sides and two 1 mm thick pre-painted silver aluminum panels. Mounting points for PCBs are provided inside both housing halves. Quick snap-fit assembly, requiring no screws.
Products
|
Model |
L (inch) |
W (inch) |
H (inch) |
Color (Ral) |
Material |
MAX PCB L (inch) |
MAX PCB W (inch) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

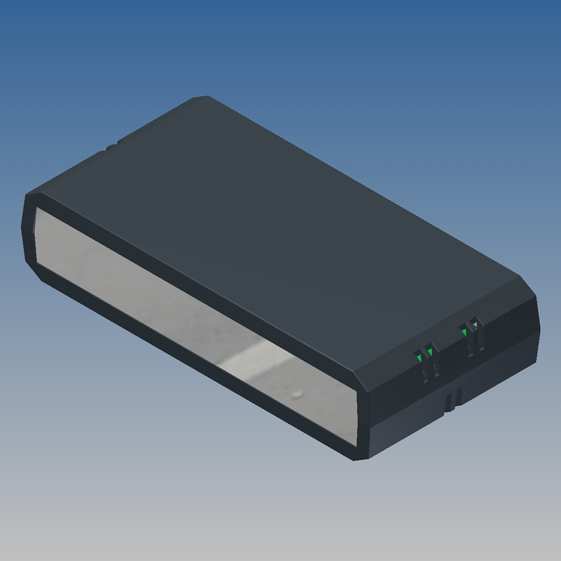

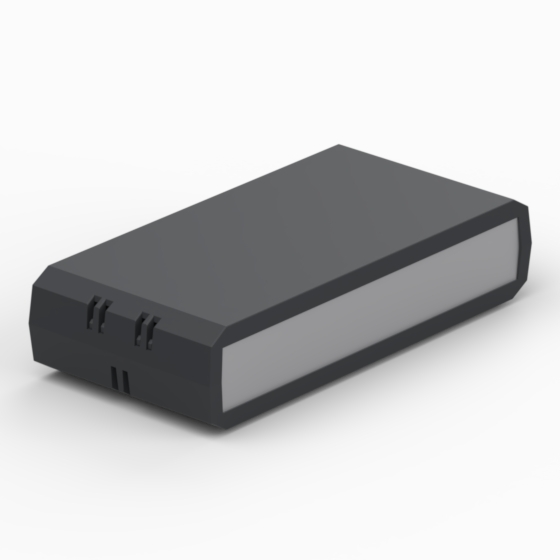

DEC-1.4 |
3,169 |
6,457 |
1,437 |
7016
|
GP40
|
5,925 |
2,799 |
- |
- |
DR
|
PDF
DWG
|
View
- Color (Ral):
7016
- Material:
GP40
- MAX PCB L (mm): 150,5
- MAX PCB W (mm): 71,1
- Screws: -
- Battery: -
- Accessories:
DR
-
Drawings:
PDF
DWG
|
|

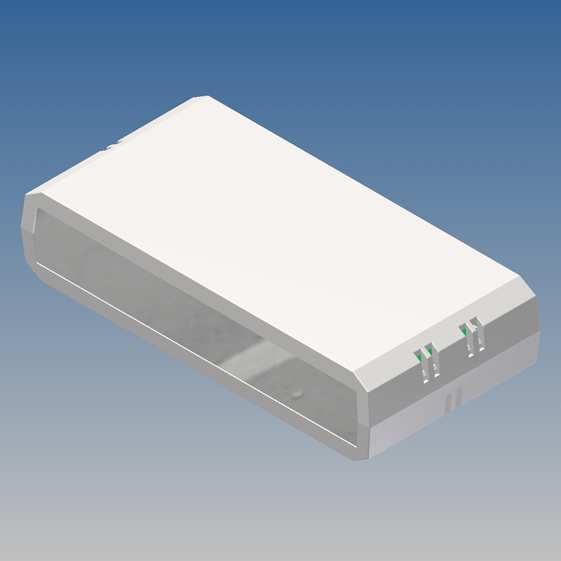

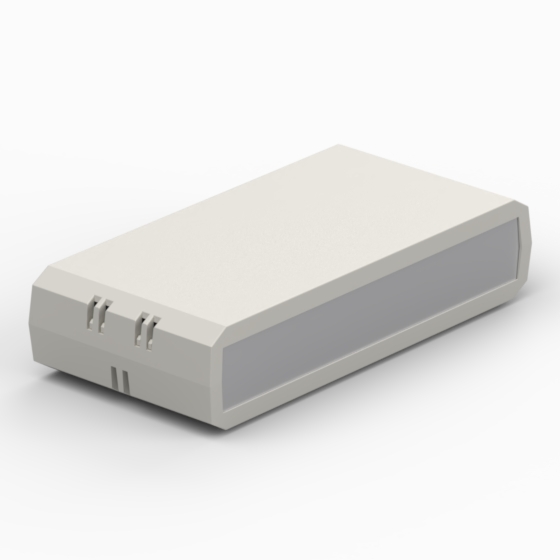

DEC-1.7 |
3,169 |
6,457 |
1,437 |
9002
|
L320
|
5,925 |
2,799 |
- |
- |
DR
|
PDF
DWG
|
View
- Color (Ral):
9002
- Material:
L320
- MAX PCB L (mm): 150,5
- MAX PCB W (mm): 71,1
- Screws: -
- Battery: -
- Accessories:
DR
-
Drawings:
PDF
DWG
|
