TB

Family Handheld - Electronic enclosures - Plastic

Description

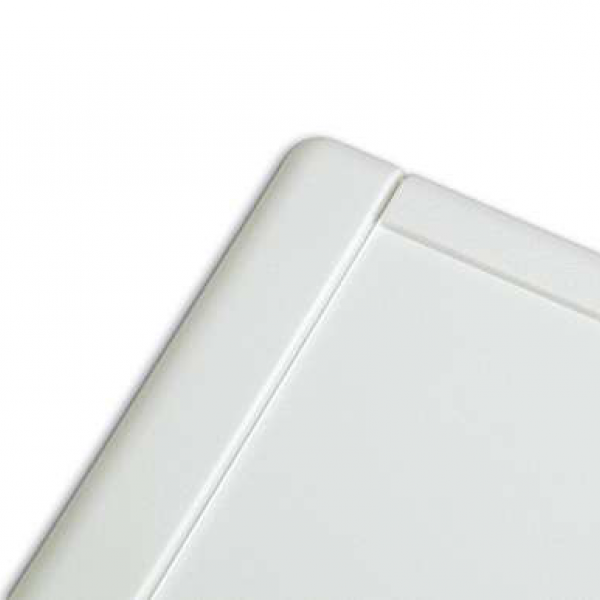

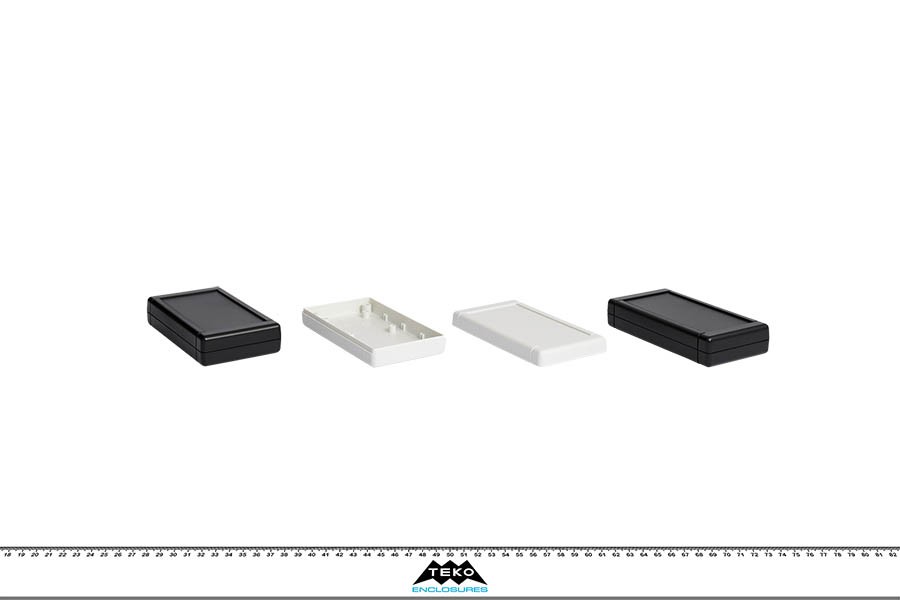

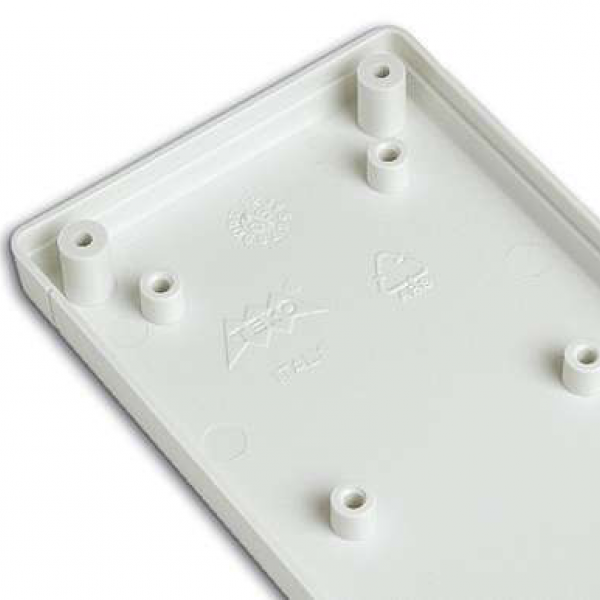

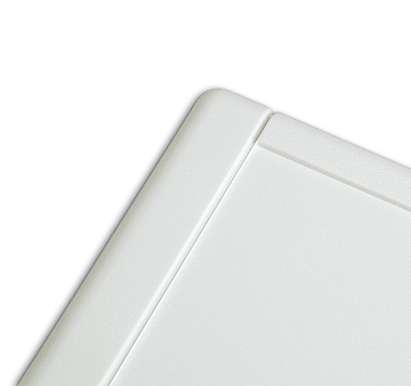

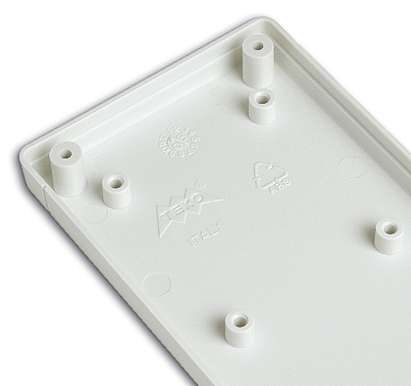

ABS enclosures with a recessed operating area 102 x 52 mm. for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.

Details

Products

Model L (inch) W (inch) H (inch) Color (Ral) Material MAX PCB L (inch) MAX PCB W (inch) Screws Battery Accessories Drawings Other

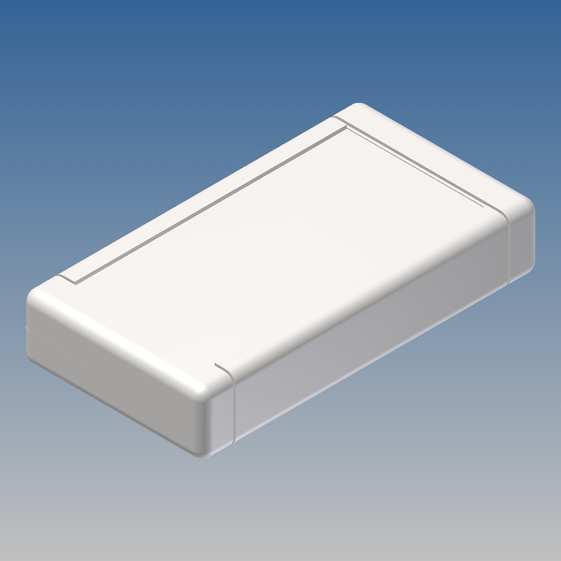

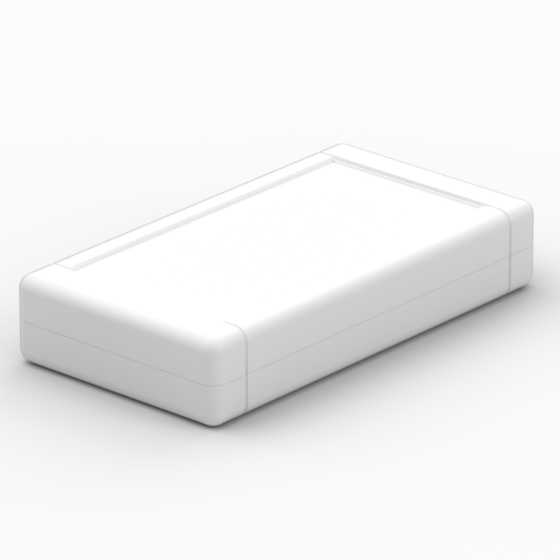

TB.7 4,961 2,669 0,965 9002
FORMACROM 9249FC 3,858 2,244 4 - M54
MT1
MW55
PDF
DWG
View

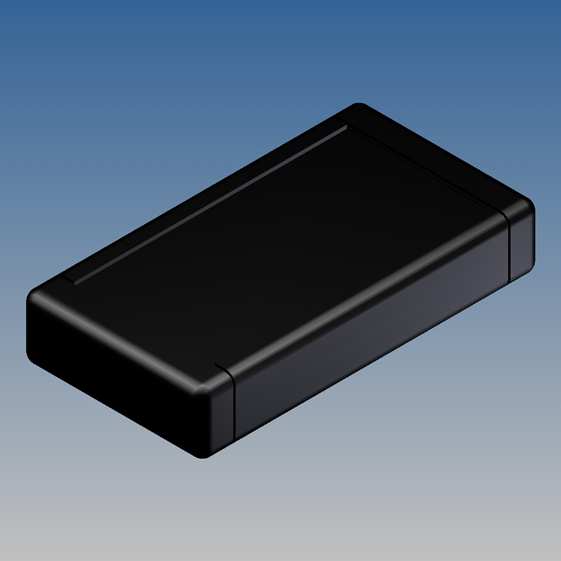

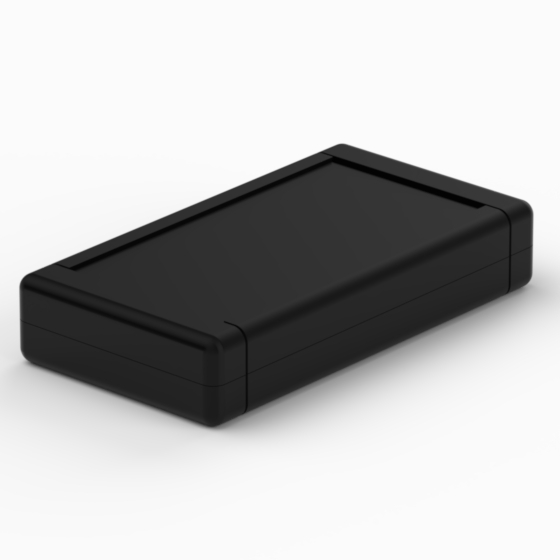

TB.9 4,961 2,669 0,965 9004
TERLURAN GP-35 3,858 2,244 4 - M54
MT1
MW55
PDF
DWG
View
12 product families, 151 series. You can't find what you're looking for? Contact us
