Description

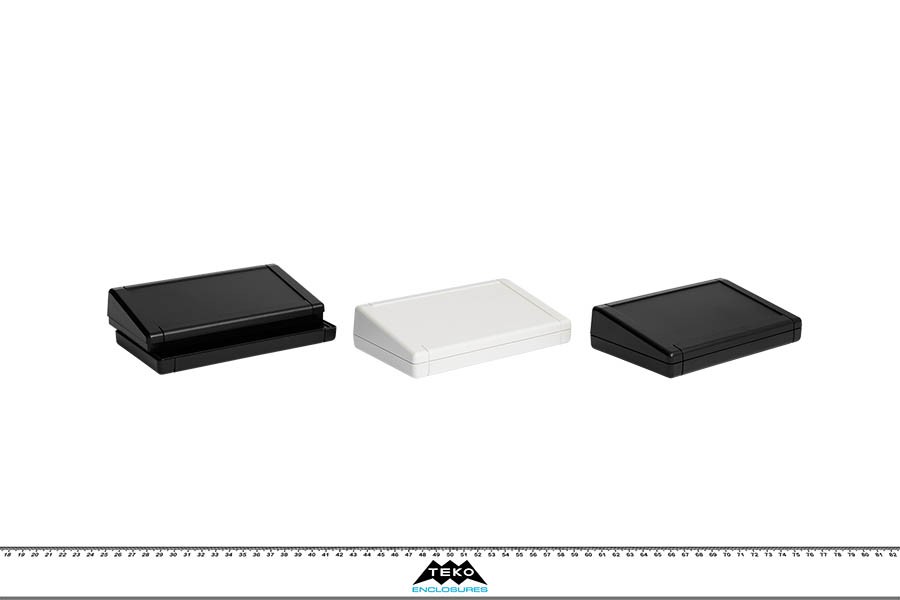

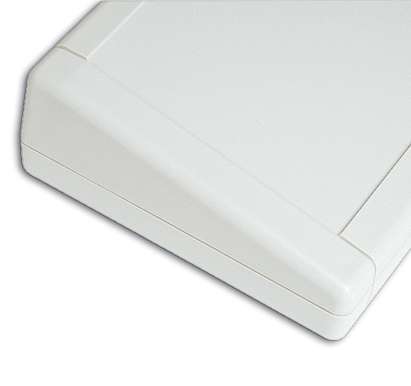

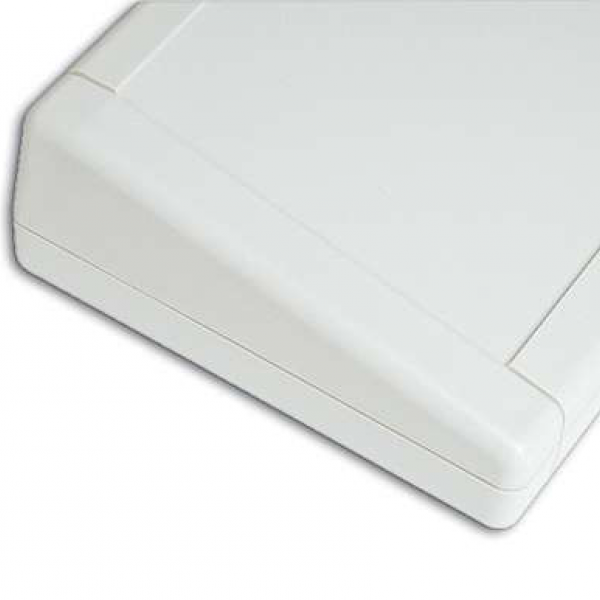

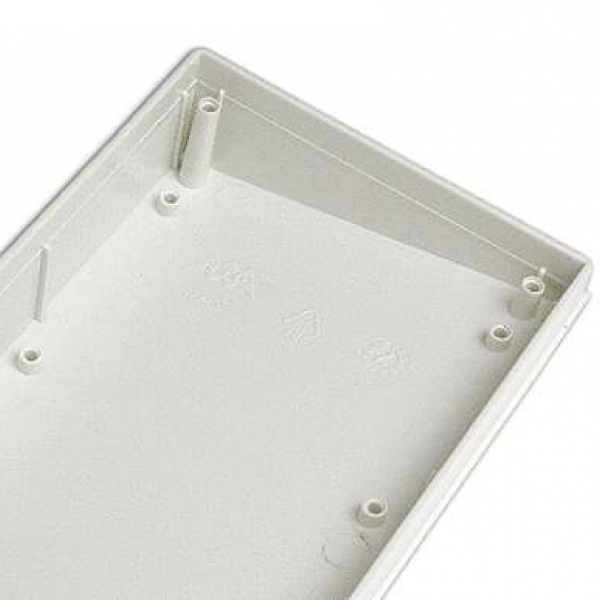

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.
Products
|
Model |
L (inch) |
W (inch) |
H (inch) |
Color (Ral) |
Material |
MAX PCB L (inch) |
MAX PCB W (inch) |
Screws |
Battery |
Accessories |
Drawings |
Other |
|

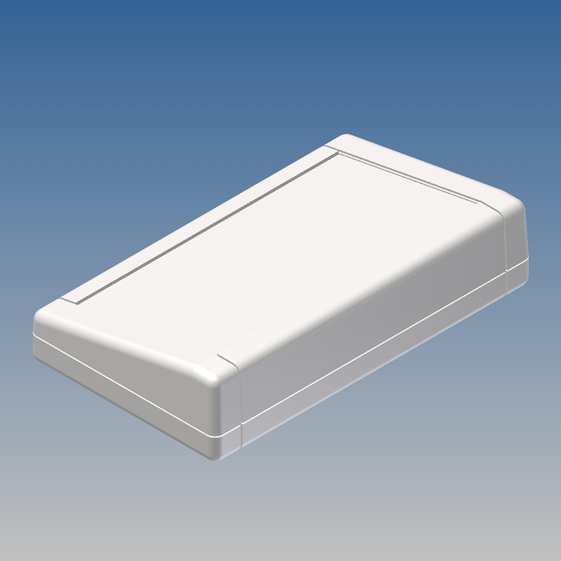

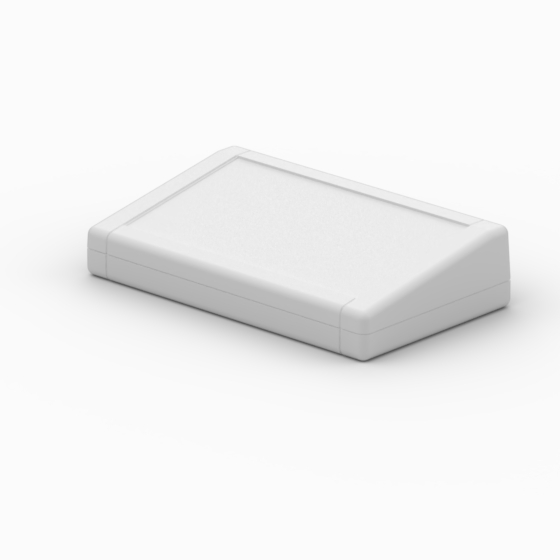

TB-1SP.7 |
6,299 |
3,701 |
1,437 |
9002
|
L320
|
5,866 |
3,150 |
4 |
- |
MT1
|
PDF
DWG
|
View
- Color (Ral):
9002
- Material:
L320
- MAX PCB L (mm): 149
- MAX PCB W (mm): 80
- Screws: 4
- Battery: -
- Accessories:
MT1
-
Drawings:
PDF
DWG
|
|

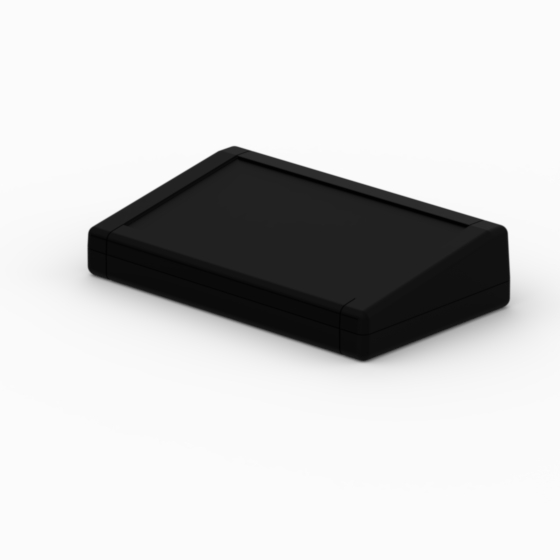

TB-1SP.9 |
6,299 |
3,701 |
1,437 |
9004
|
P2H-AT
|
5,866 |
3,150 |
4 |
- |
MT1
|
PDF
DWG
|
View
- Color (Ral):
9004
- Material:
P2H-AT
- MAX PCB L (mm): 149
- MAX PCB W (mm): 80
- Screws: 4
- Battery: -
- Accessories:
MT1
-
Drawings:
PDF
DWG
|
