Description

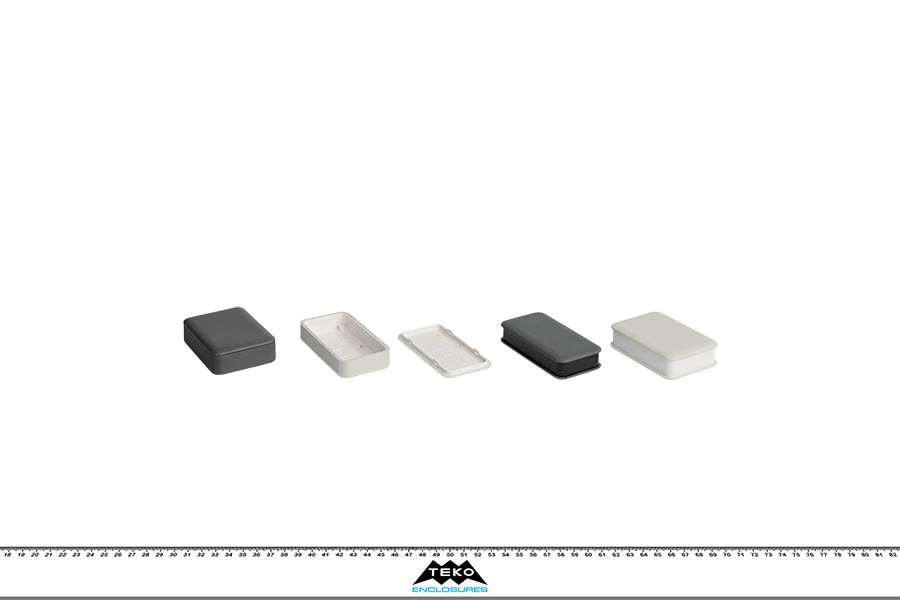

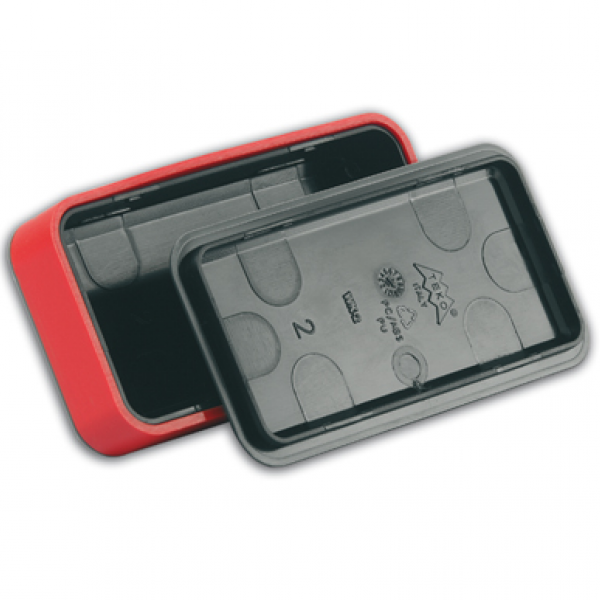

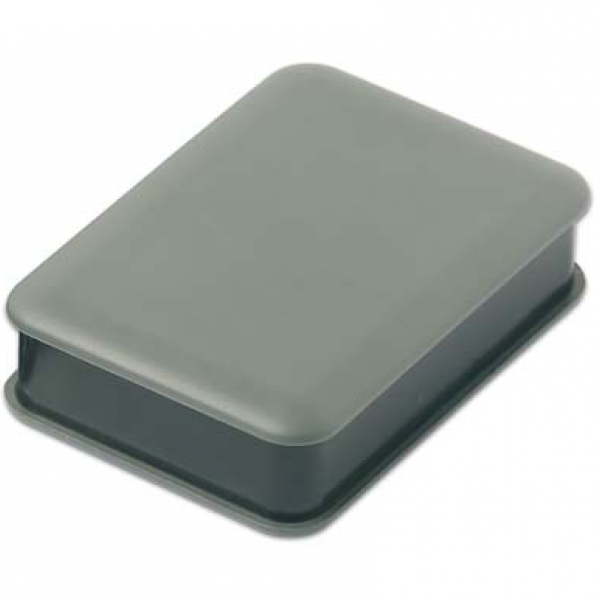

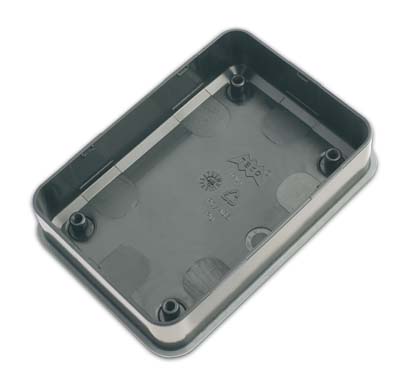

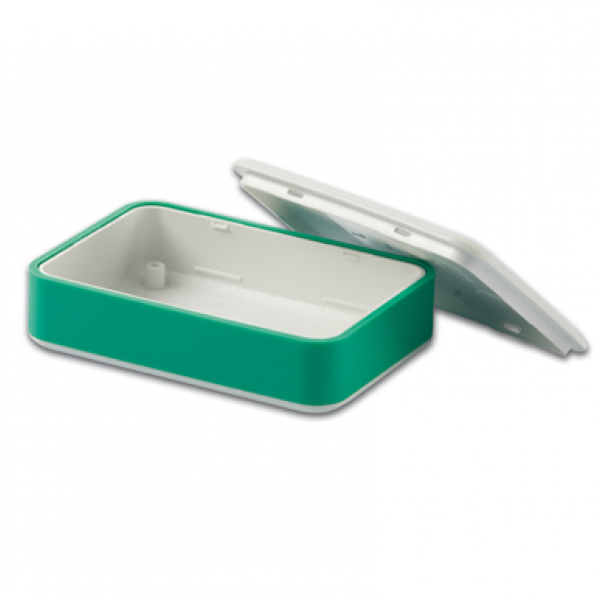

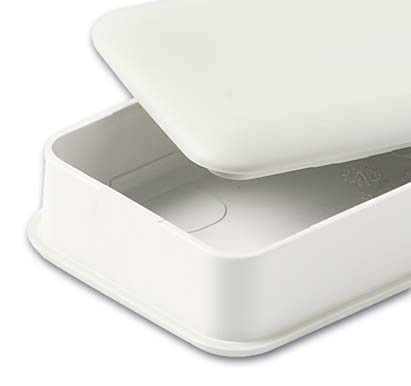

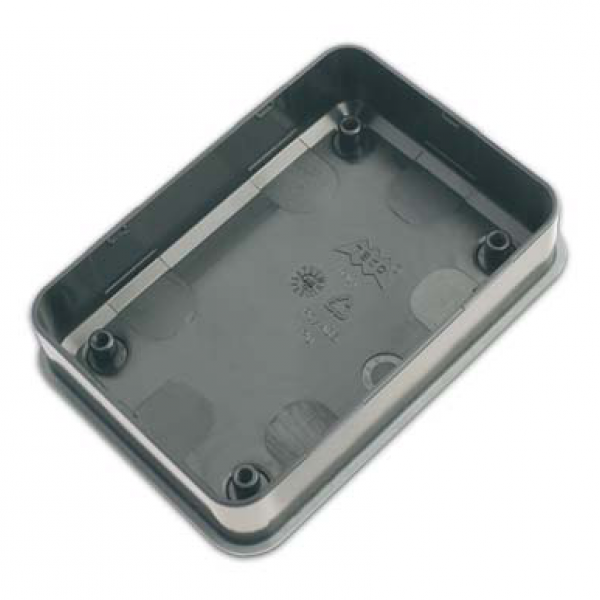

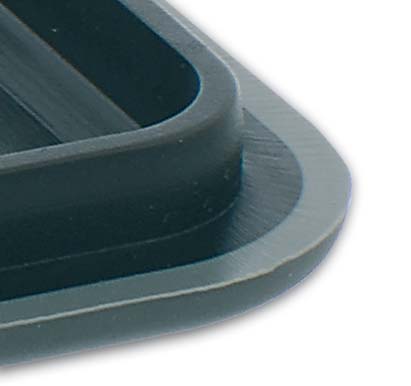

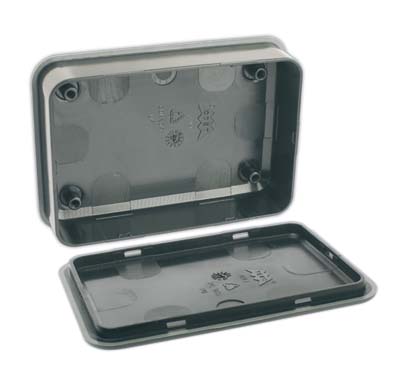

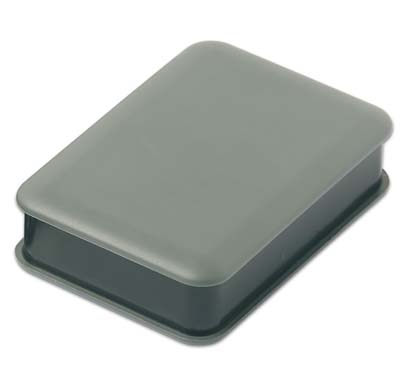

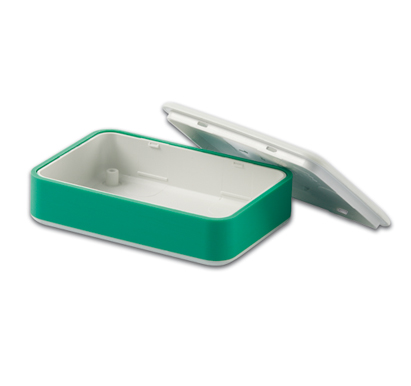

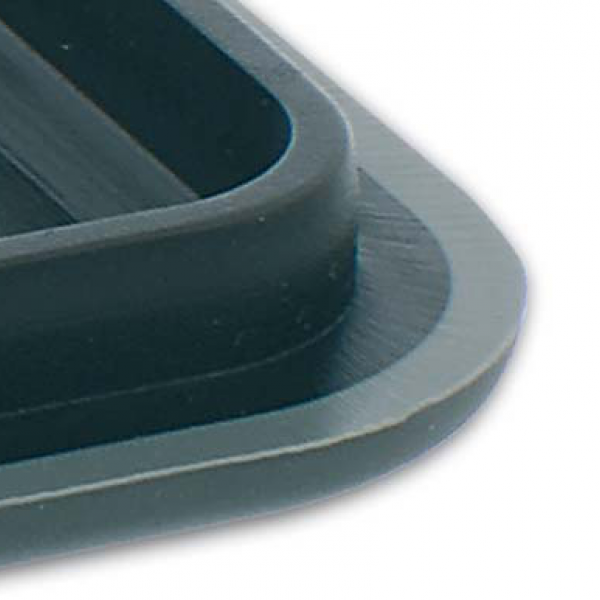

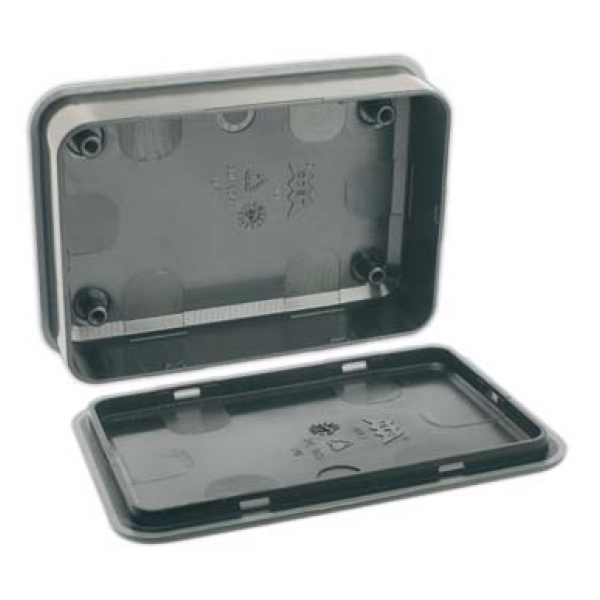

Series of enclosures moulded in two-materials (ABS/PC and TPU) with snap-on closing. Base with integral mounting studs for PCB. Two combinations of colours available: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.
Details
Products
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

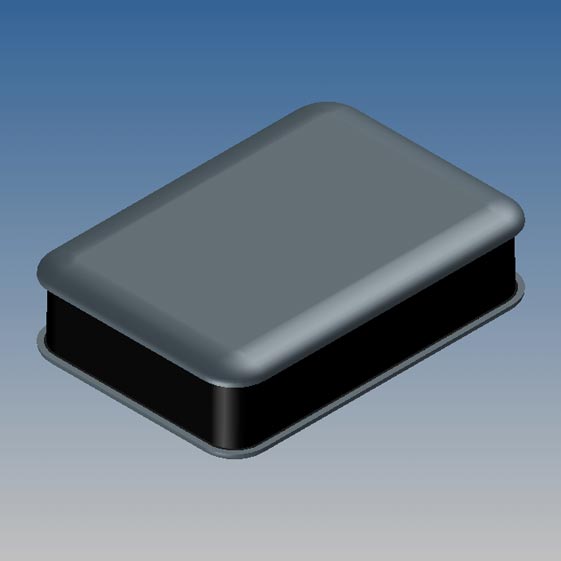

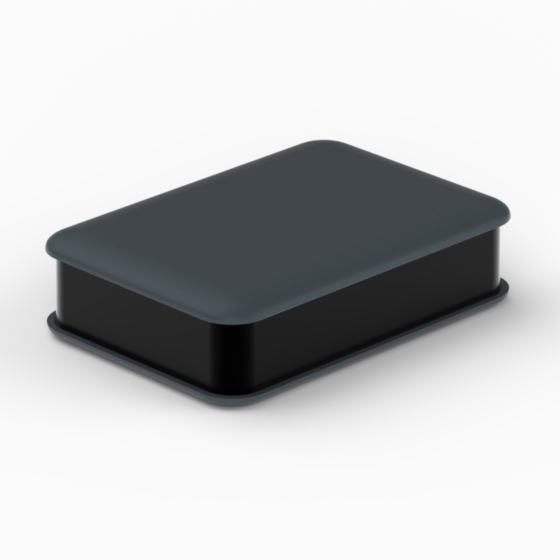

WK-2.29 | 3,15 | 2,205 | 0,866 |
9004 7012 |
P2H-AT - 8020 | 2,874 | 1,89 | - | - |
RWK-2 |
PDF DWG |
|
|

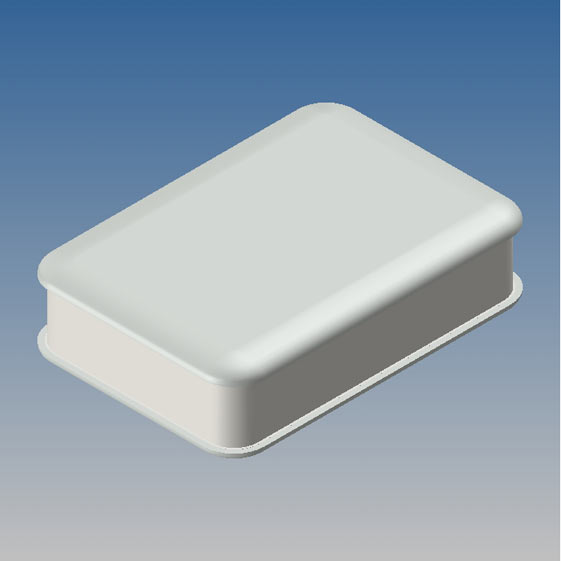

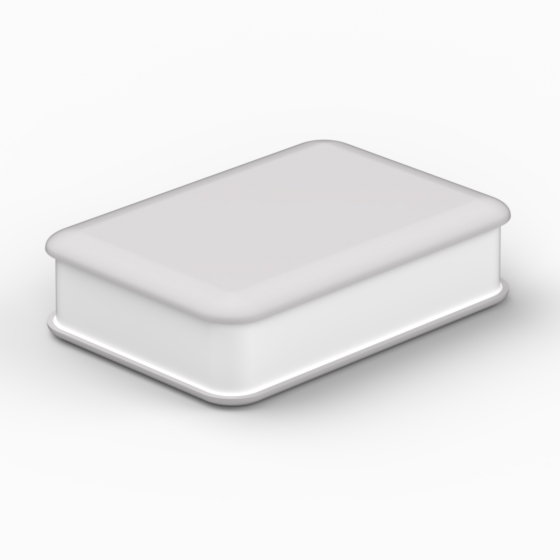

WK-2.30 | 3,15 | 2,205 | 0,866 |
9002 9018 |
P2H-AT - 8020 | 2,874 | 1,89 | - | - |
RWK-2 |
PDF DWG |
|
|

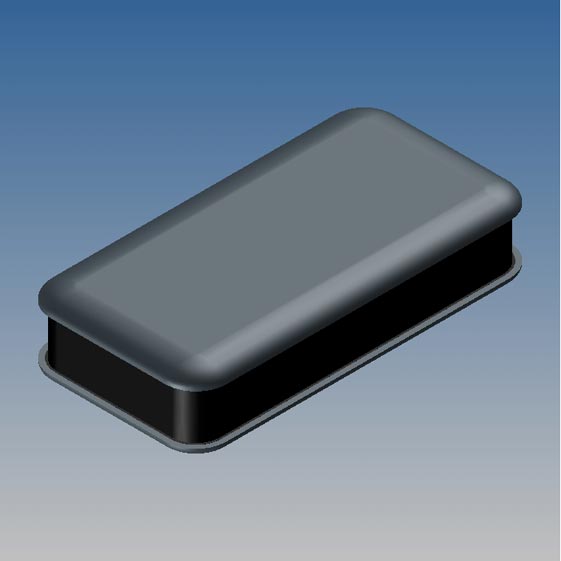

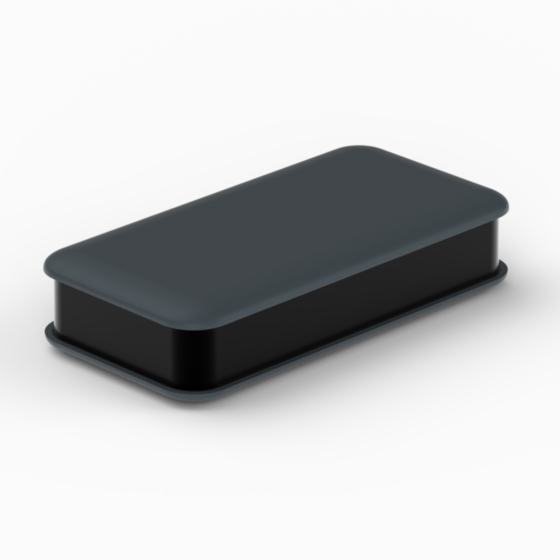

WK-3.29 | 3,543 | 1,811 | 0,787 |
9004 7012 |
P2H-AT - 8020 | 3,228 | 1,496 | - | - |
RWK-3 |
PDF DWG |
|
|

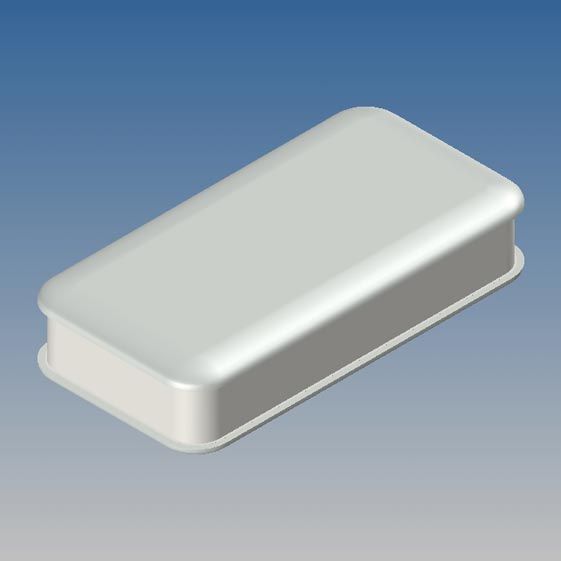

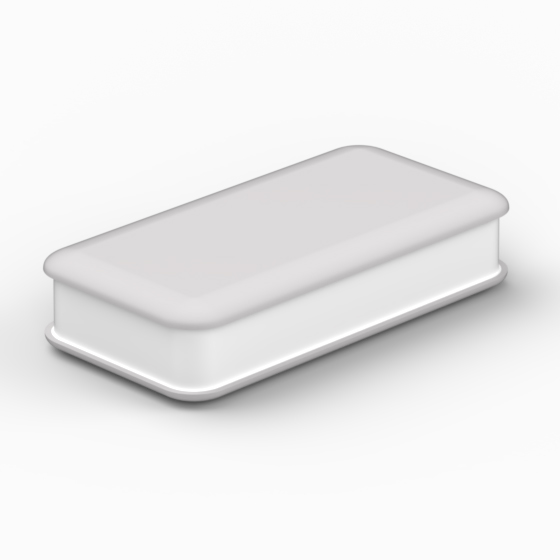

WK-3.30 | 3,543 | 1,811 | 0,787 |
9002 9018 |
P2H-AT - 8020 | 3,228 | 1,496 | - | - |
RWK-3 |
PDF DWG |
