Description

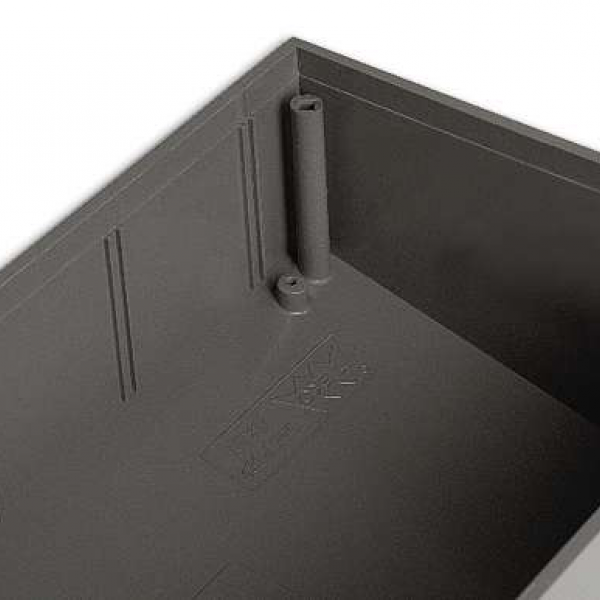

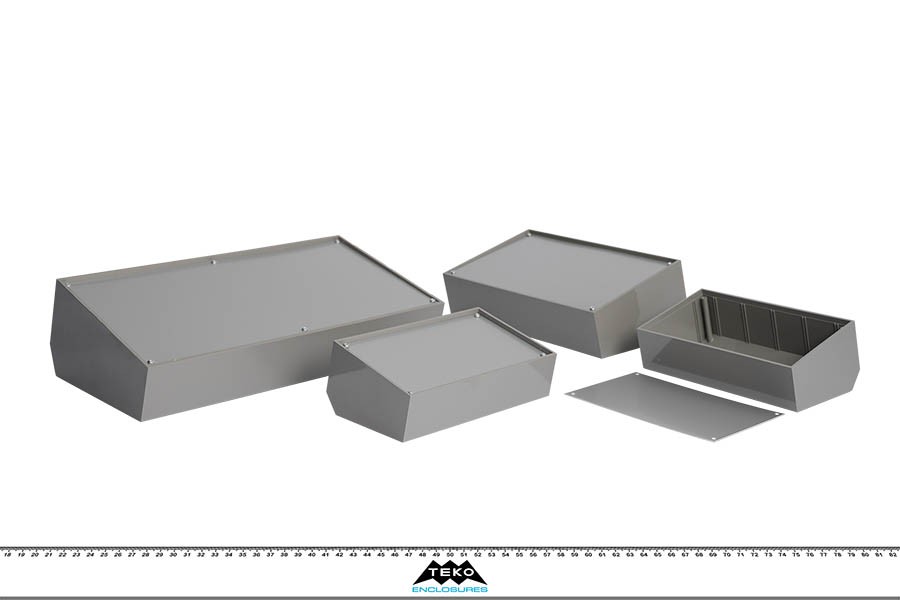

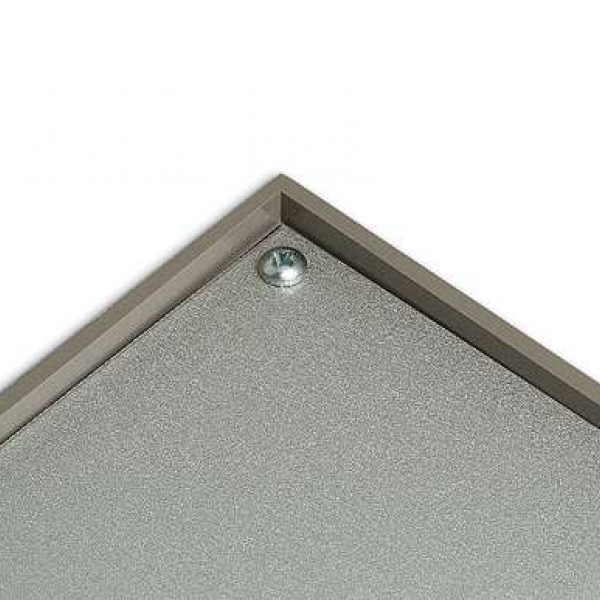

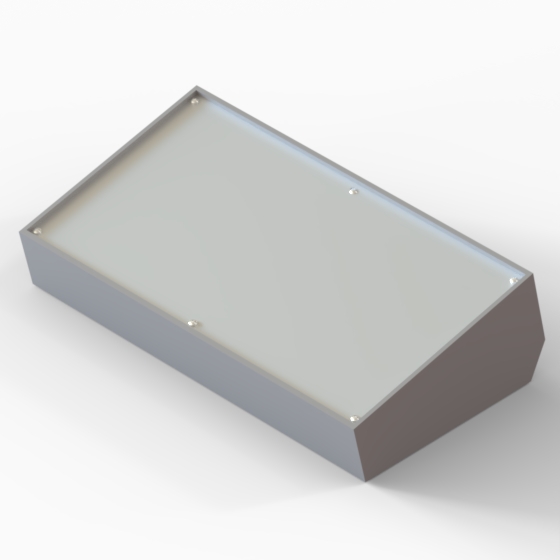

ABS enclosure with a 15° inclined 1mm aluminium panel. The base walls have integral PCB guides and mounting studs. Glossy surface finish. Closing by four screws.
Details
Products
| |
|---|---|

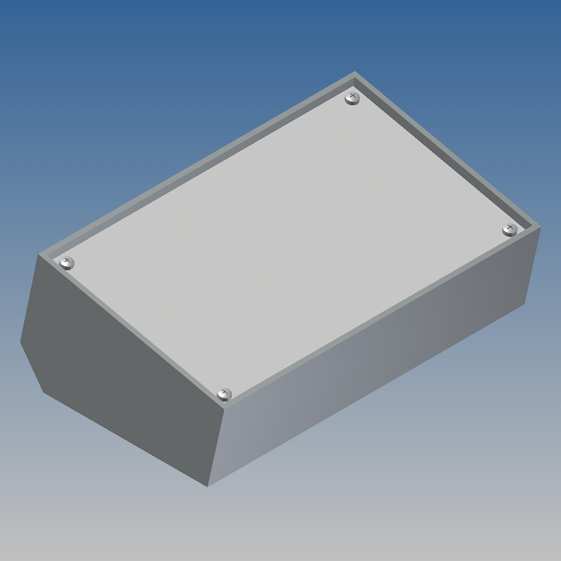

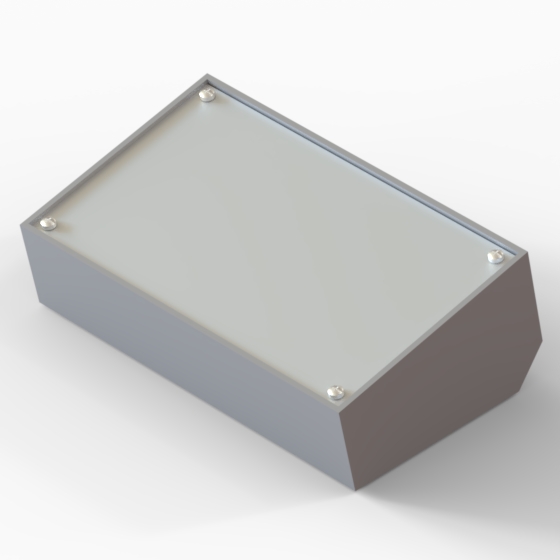

| Model | 362.8 |
| L (inch) | 6,339 |
| W (inch) | 3,819 |
| H (inch) | 2,406 |
| Color (Ral) |
7037 |
| Material | N-UT |
| MAX PCB L (inch) | 6,024 |
| MAX PCB W (inch) | 3,228 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

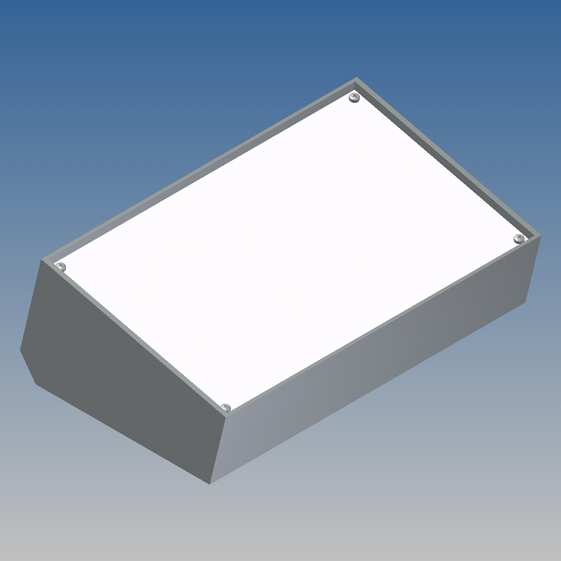

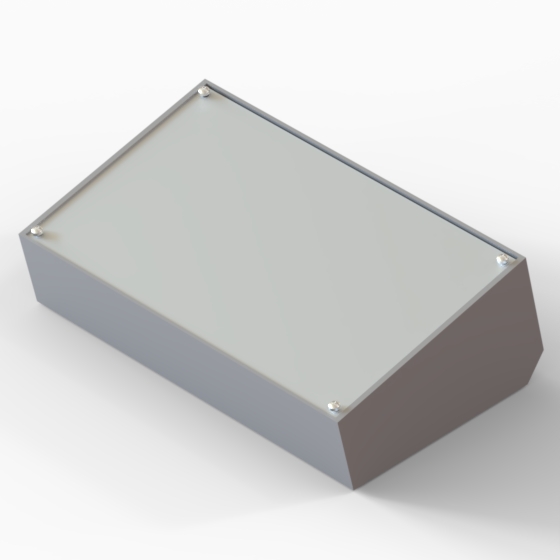

| Model | 363.8 |
| L (inch) | 8,504 |
| W (inch) | 5,118 |
| H (inch) | 3,059 |
| Color (Ral) |
7037 |
| Material | N-UT |
| MAX PCB L (inch) | 8,150 |
| MAX PCB W (inch) | 4,646 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

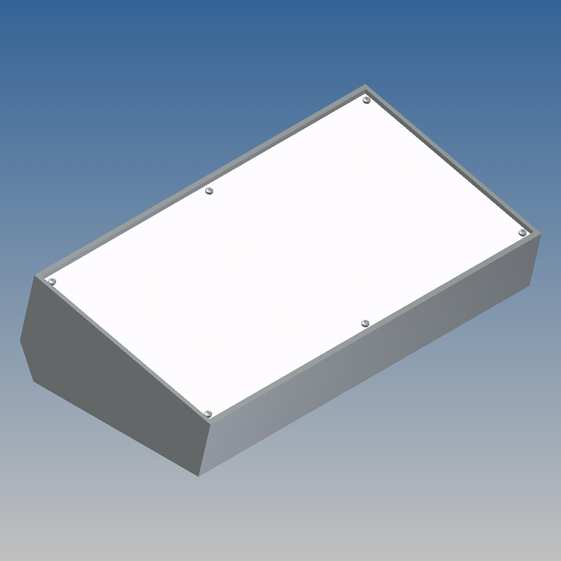

| Model | 364.8 |
| L (inch) | 12,244 |
| W (inch) | 6,693 |
| H (inch) | 3,504 |
| Color (Ral) |
7037 |
| Material | N-UT |
| MAX PCB L (inch) | 11,890 |
| MAX PCB W (inch) | 5,906 |
| Screws | 6 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (inch) | W (inch) | H (inch) | Color (Ral) | Material | MAX PCB L (inch) | MAX PCB W (inch) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
362.8 | 6,339 | 3,819 | 2,406 |
7037 |
N-UT | 6,024 | 3,228 | 4 | - |
PDF DWG |
View
|
|
|
|
363.8 | 8,504 | 5,118 | 3,059 |
7037 |
N-UT | 8,150 | 4,646 | 4 | - |
PDF DWG |
View
|
|
|
|
364.8 | 12,244 | 6,693 | 3,504 |
7037 |
N-UT | 11,890 | 5,906 | 6 | - |
PDF DWG |
View
|
